Single Row Tapered Roller Bearing D 15-55mm

Short Description:

WELCOME TO DEMY BEARING，WELCOME TO VISIT OUR FACTORY

FOB Price:

Min.Order Quantity: 500-1000 Pieces

Supply Ability: 100000 Pieces/per Month

Port: Ningbo/Shanghai

Payment Terms: T/T,L/C

Send email to us Download as PDF

Product Detail

Product Tags

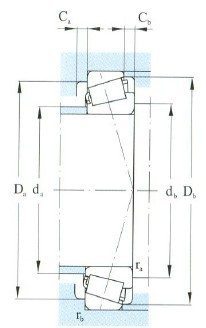

Boundary dimensions (mm)							Load rating (KN)		Limiting speed (r/min)		Bearing number	Dimentions series to ISO355	Load centre mm	Abutment and fillet dimensions mm									Axial load factors			Weight (reference) (kg)
d	D	T	B	C	r1,2 min	r3,4 min	Cr	Cor	Grease	Oil	Bearing number	Dimentions series to ISO355	a	da max	db max	Da max	Da min	Db min	Ca min	Cb min	ra max	rb max	e	Y	Yo	Weight (reference) (kg)
15	42	14.25	13.0	11.0	1.0	1.0	21.6	20.5	9000	13000	30302	2FB	10	22.0	21	36	36	38.0	2	3.0	1.0	1.0	0.28	2.10	1.100	0.0950
17	40	13.25	12.0	11.0	1.0	1.0	20.9	22.2	9000	13000	30203	2DB	10	23.0	23	34	34	37.0	2	2.0	1.0	1.0	0.35	1.70	0.900	0.0795
17	40	17.25	16.0	14.0	1.0	1.0	27.3	28.3	9000	13000	32203	2DD	12	26.0	22	34	33	38.0	2	3.0	1.0	1.0	0.29	2.10	1.100	0.1020
17	47	15.25	14.0	10.5	1.0	1.0	23.9	23.5	7500	10000	31303	7FB	13	25.0	23	41	40	42.0	2	3.0	1.0	1.0	0.83	0.72	0.400	0.1320
17	47	15.25	14.0	12.0	1.0	1.0	27.5	25.7	8500	12000	30303	2FB	10	25.0	23	41	40	42.0	2	3.0	1.0	1.0	0.28	2.10	1.100	0.1310
17	47	20.25	19.0	16.0	1.0	1.0	34.5	35.2	8000	11000	32303	7FD	12	24.0	23	41	39	43.0	3	4.0	1.0	1.0	0.28	2.10	1.100	0.1700
20	42	15.00	15.0	12.0	0.6	0.6	23.0	32.9	8500	12000	32004X	3CC	11	25.0	25	37	36	39.0	2	3.0	0.6	60	0.37	1.60	0.900	0.1050
20	47	15.25	14.0	12.0	1.0	1.0	27.2	28.6	8000	11000	30204	2DB	11	27.0	26	41	40	43.0	2	3.0	1.0	1.0	0.35	1.70	0.900	0.1280
20	47	19.25	18.0	15.0	1.0	1.0	37.0	40.0	8000	11000	32204	2DD	15	29.0	26	41	38	44.0	2	4.0	1.0	1.0	0.35	1.70	0.950	0.1630
20	52	16.25	15.0	13.0	1.5	1.5	32.8	32.2	8000	11000	30304	2FB	11	28.0	27	45	44	47.0	2	3.0	1.0	1.0	0.30	2.00	1.100	0.1690
20	52	22.25	21.0	18.0	1.5	1.5	44.8	44.9	7500	10000	32304	2FD	14	27.0	27	45	43	47.0	2	3.0	1.0	1.0	0.30	2.00	1.100	0.2330
22	44	15.00	15.0	11.5	0.6	0.6	29.3	36.3	8000	11000	320/22X	3CC	11	27.0	27	39	38	41.0	3	3.5	0.6	0.6	0.40	1.50	0.800	0.1000
25	47	15.00	15.0	11.5	0.6	0.6	26.0	39.5	8000	11000	32005X	4CC	12	30.0	30	42	40	44.0	3	3.5	0.6	0.6	0.43	1.40	0.800	0.1220
25	52	16.25	15.0	13.0	1.0	1.0	33.6	38.1	7500	10000	30205	3CC	13	31.0	31	46	44	48.0	2	3.0	1.0	1.0	0.37	1.60	0.900	0.1560
25	52	19.25	18.0	16.0	1.0	1.0	41.6	45.2	7300	9800	32205	2CD	13	31.0	31	46	43	49.0	2	4.0	1.0	1.0	0.36	1.67	0.920	0.1840
25	47	17.00	17.0	14.0	1.0	1.0	32.8	43.1	8000	11000	33005	2CE	11	29.0	33	42	41	45.0	3	3.0	0.6	0.6	2.10	1.10	0.131	0.1310
25	52	22.00	22.0	18.0	1.0	1.0	49.3	58.2	6700	9000	33205	2DE	14	30.0	31	46	43	49.0	4	4.0	1.0	1.0	0.35	1.70	0.900	0.2300
25	62	18.25	17.0	15.0	1.5	1.5	49.1	46.4	6700	9000	30305	2FB	13	34.0	32	55	54	57.0	2	3.0	1.0	1.0	0.30	2.00	1.100	0.2650
25	62	18.25	17.0	13.0	1.5	1.5	42.2	43.8	5600	7500	31305	7FB	20	34.0	32	55	47	59.0	3	5.0	1.0	1.0	0.83	0.72	0.400	0.2660
25	62	25.25	24.0	20.0	1.5	1.5	64.7	67.6	6000	8000	32305	2FD	16	33.0	32	55	52	57.0	3	5.0	1.0	1.0	0.30	2.00	1.100	0.3730
28	52	16.00	16.0	12.0	1.0	1.0	37.2	46.3	4000	7000	320/28X	4CC	12	34.0	34	46	45	49.0	3	4.0	1.0	1.0	0.43	1.40	0.800	0.1500
28	58	24.00	24.0	19.0	1.0	1.0	59.7	68.2	6700	8900	332/28	2DE	16	34.0	34	52	49	55.0	5	5.0	1.0	1.0	0.34	1.77	0.970	0.2930
30	55	17.00	17.0	13.0	1.0	1.0	32.9	50.8	6700	9000	32006X	4CC	13	35.0	36	49	48	52.0	3	4.0	1.0	1.0	0.43	1.40	0.800	0.1810
30	55	20.00	20.0	16.0	1.0	1.0	44.0	59.3	6700	9000	33006	2CE	13	39.0	35	49	48	53.0	3	4.0	1.0	1.0	0.29	2.10	1.100	0.2080

Boundary dimensions (mm)							Load rating (KN)		Limiting speed (r/min)		Bearing number	Dimentions series to ISO355	Load centre mm	Abutment and fillet dimensions mm									Axial load factors			Weight (reference) (kg)
d	D	T	B	C	r1,2 min	r3,4 min	Cr	Cor	Grease	Oil	Bearing number	Dimentions series to ISO355	a	da max	db max	Da max	Da min	Db min	Ca min	Cb min	ra max	rb max	e	Y	Yo	Weight (reference) (kg)
–	62	17.25	16.0	14.0	1.0	1.0	42.6	48.2	6300	8500	30206	3DB	14	38.0	36	56	53	57.0	2	3.0	1.0	1.0	0.37	1.60	0.900	0.2410
–	62	21.25	20.0	17.0	1.0	1.0	51.0	61.8	6300	8500	32206	3DC	15	37.0	36	56	52	58.0	3	4.0	1.0	1.0	0.37	1.60	0.900	0.2910
–	62	25.00	25.0	19.5	1.0	1.0	59.7	68.2	5600	7500	33206	2DE	16	37.0	36	56	52	58.0	3	4.0	1.0	1.0	0.37	1.60	0.900	0.3700
–	72	20.75	19.0	16.0	1.5	1.5	61.7	61.1	5600	7500	30306	2FB	15	41.0	37	65	62	66.0	3	4.5	1.0	1.0	0.31	1.90	1.100	0.3940
–	72	20.75	19.0	14.0	1.5	1.5	53.2	57.3	5000	6700	31306	7FB	23	40.0	37	65	55	68.0	3	6.5	1.0	1.0	0.83	0.72	0.400	0.3980
–	72	28.75	27.0	23.0	1.5	1.5	85.3	94.2	5300	7000	32306	2FD	19	39.0	37	65	59	66.0	3	5.5	1.0	1.0	0.31	1.90	1.100	0.5690
32	58	17.00	17.0	13.0	1.0	1.0	38.3	48.9	6300	8500	320/32X	4CC	14	38.0	38	52	50	55.0	3	4.0	1.0	1.0	0.46	1.30	0.700	0.1900
32	65	26.00	26.0	20.5	1.0	1.0	75.0	89.8	6000	8000	332/32	2DE	17	38.0	38	59	55	62.0	5	5.5	1.0	1.0	0.35	1.73	0.950	0.3950
35	55	14.00	14.0	11.5	0.6	0.6	27.4	39.0	6300	8500	32907	2BD	11	43.0	40	50	50	53.0	3	2.5	0.6	0.6	0.29	2.10	1.100	0.1230
35	62	18.00	18.0	14.0	1.0	1.0	39.2	57.6	6000	8000	32007X	4CC	15	41.0	41	56	54	59.0	4	4.0	1.0	1.0	0.46	1.30	0.700	0.2330
35	62	21.00	21.0	17.0	1.0	1.0	51.1	71.4	5600	8000	33007	2CE	14	40.0	44	56	55	60.0	4	4.0	1.0	1.0	0.31	2.00	1.100	0.2670
35	72	18.25	17.0	15.0	1.5	1.5	53.5	60.8	5300	7000	30207	3DB	15	44.0	42	65	62	67.0	3	3.0	1.0	1.0	0.37	1.60	0.900	0.3400
35	72	24.25	23.0	19.0	1.5	1.5	67.6	84.3	5300	7000	32207	3DC	18	43.0	42	65	61	67.0	3	5.0	1.0	1.0	0.37	1.60	0.900	0.4510
35	72	28.00	28.0	22.0	1.5	1.5	87.0	107.0	4800	6300	33207	2DE	17	42.0	42	65	61	68.0	5	6.0	1.0	1.0	0.35	1.70	0.900	0.5400
35	80	22.75	21.0	18.0	2.0	1.5	78.9	80.3	5000	7000	30307	2FB	17	46.0	44	71	70	74.0	3	4.5	1.5	1.5	0.31	1.90	1.100	0.5200
35	80	22.75	21.0	15.0	2.0	1.5	69.0	74.7	4500	6000	31307	7FB	26	45.0	44	71	62	76.0	3	7.5	1.5	1.5	0.83	0.72	0.400	0.5200
35	80	32.75	31.0	25.0	2.0	1.5	104.	116	4800	6300	32307	2FE	20	44.0	44	71	66	74.0	4	7.5	1.5	1.5	0.31	1.90	1.100	0.7530
40	62	15.00	15.0	2.0	0.6	0.6	34.0	47.0	5600	7500	32908	2BC	12	44.0	48	57	57	60.0	3	3.0	0.6	0.6	0.29	2.10	1.100	0.1610
40	68	19.00	19.0	14.5	1.0	1.0	49.0	69.1	5300	7000	32008X	3CD	15	46.0	46	62	60	65.0	4	4.5	1.0	1.0	0.37	1.60	0.900	0.2770
40	68	22.00	22.0	18.0	1.0	1.0	63.5	85.5	5300	7100	33008	2BE	15	45.0	49	62	61	66.0	4	4.0	1.0	1.0	0.28	2.10	1.200	0.3220
40	75	26.00	26.0	20.5	1.5	1.5	83.6	108	5000	6700	33108	2CE	18	47.0	47	68	65	71.0	4	5.5	1.0	1.0	0.35	1.70	0.900	0.5100
40	80	19.75	18.0	16.0	1.5	1.5	62.0	60.8	4800	6300	30208	3DB	17	49.0	47	73	69	74.0	3	3.5	1.0	1.0	0.37	1.60	0.900	0.4310
40	80	24.75	23.0	19.0	1.5	1.5	76.8	94.7	4800	6300	32208	3DC	19	49.0	47	73	68	75.0	3	5.5	1.0	1.0	0.37	1.60	0.900	0.5410
40	80	32.00	32.0	25.0	1.5	1.5	105.	132	4300	5600	33208	2DE	21	47.0	47	73	68	75.0	3	5.5	1.0	1.0	0.37	1.60	0.900	0.7700

Boundary dimensions (mm)							Load rating (KN)		Limiting speed (r/min)		Bearing number	Dimentions series to ISO355	Load centre mm	Abutment and fillet dimensions mm									Axial load factors			Weight (reference) (kg)
d	D	T	B	C	r1,2 min	r3,4 min	Cr	Cor	Grease	Oil	Bearing number	Dimentions series to ISO355	a	da max	db max	Da max	Da min	Db min	Ca min	Cb min	ra max	rb max	e	Y	Yo	Weight (reference) (kg)
40	90	25.25	23.0	20.0	2.0	1.0	95.1	105	4500	6000	30308	2FB	20	48.0	50	75	70	80.0	5	5.0	1.5	1.5	0.35	1.70	0.900	0.7610
40	90	25.25	23.0	17.0	2.0	1.5	85.4	94.0	4000	5300	31308	7FB	29	53.0	49	81	77	82.0	3	5.0	1.5	1.5	0.35	1.70	0.900	0.7380
–	90	35.25	33.0	27.0	2.0	1.5	116	149	4000	5300	32308	2FD	23	51.0	49	81	71	86.0	3	8.0	1.5	1.5	0.83	0.72	0.400	1.0600
45	68	15.00	15.0	12.0	0.6	0.6	34.5	50.5	5000	6700	32909	2BC	12	50.0	53	63	62	65.0	3	3.0	0.6	0.6	0.32	1.90	1.000	0.1870
45	75	20.00	20.0	15.5	1.0	1.0	56.0	75.0	4800	6300	32009X	3CC	16	52.0	51	69	67	72.0	4	4.5	1.0	1.0	0.40	1.50	0.800	0.3500
45	75	24.00	24.0	19.0	1.0	1.0	68.9	94.0	4800	6300	33009	2CE	16	54.0	51	69	67	72.0	4	5.0	1.0	1.0	0.29	2.00	1.100	0.3980
45	80	26.00	26.0	20.5	1.5	1.5	85.5	115	4500	6000	33109	3CE	19	52.0	52	73	69	77.0	4	5.5	1.0	1.0	0.37	1.60	0.900	0.5600
45	85	20.75	19.0	16.0	1.5	1.5	71.0	80.1	4500	6000	30209	3DB	18	54.0	52	78	74	80.0	3	4.5	1.0	1.0	0.40	1.50	0.800	0.4770
45	85	24.75	23.0	19.0	1.5	1.5	82.5	131	4500	6000	32209	3DC	20	54.0	52	78	73	80.0	3	5.5	1.0	1.0	0.40	1.50	0.800	0.5940
45	85	32.00	32.0	25.0	1.5	1.5	111	142	4000	5300	33209	3DE	22	52.0	52	78	72	81.0	5	7.0	1.0	1.0	0.40	1.50	0.800	0.8200
45	100	27.25	25.0	22.0	2.0	1.5	109	129	4000	5300	30309	2FB	21	59.0	54	91	86	92.0	3	5.0	1.5	1.5	0.35	1.70	0.900	1.0100
45	100	27.25	25.0	18.0	2.0	1.5	96.3	108	3400	4500	31309	7FB	32	57.0	54	91	79	95.0	4	9.0	1.5	1.5	0.83	0.72	0.400	0.9450
45	100	38.25	36.0	30.0	2.0	1.5	151	181	3600	4800	32309	2FD	25	57.0	54	91	82	93.0	4	8.0	1.5	1.5	0.35	1.70	0.900	1.4100
50	72	15.00	15.0	12.0	0.6	0.6	33.2	51.3	4500	6300	32910	2BC	14	54.0	58	67	66	70.0	3	3.0	0.6	0.6	0.34	1.80	0.970	0.1910
50	80	20.00	20.0	15.5	1.0	1.0	59.5	82.3	4500	6300	32010X	3CC	18	57.0	56	74	72	77.0	4	4.5	1.0	1.0	0.43	1.40	0.800	0.3800
50	80	24.00	24.0	19.0	1.0	1.0	73.1	104	4500	6000	33010	2CE	17	56.0	56	74	72	76.0	4	5.0	1.0	1.0	0.31	1.90	1.100	0.4500
50	85	26.00	26.0	20.0	1.5	1.5	87.7	121	4300	5600	33110	3CE	20	57.0	57	78	74	82.0	4	6.0	1.0	1.0	0.40	1.50	0.800	0.5900
50	90	21.75	20.0	17.0	1.5	1.5	79.1	102	4300	5600	30210	3DB	20	58.0	57	83	79	85.0	3	4.5	1.0	1.0	0.43	1.40	0.800	0.5590
50	90	24.75	23.0	19.0	1.5	1.5	88.0	117	4300	5600	32210	3DC	21	58.0	57	83	78	85.0	3	5.5	1.0	1.0	0.43	1.40	0.800	0.6380
50	90	32.00	32.0	24.5	1.5	1.5	119	161	3800	5000	33210	3DE	23	57.0	57	83	77	87.0	5	7.5	1.0	1.0	0.40	1.50	0.800	0.9000
50	110	29.25	27.0	23.0	2.5	2.0	134	150	3600	4800	30310	2FB	23	65.0	60	100	95	102.0	4	6.0	2.0	2.0	0.35	1.70	0.900	1.3000
50	110	29.25	27.0	19.0	2.5	2.0	112	123	3200	4300	31310	7FB	35	62.0	60	100	87	104.0	4	10.0	2.0	2.0	0.83	0.72	0.400	1.2400
50	110	42.25	40.0	33.0	2.5	2.0	161	127	3200	4300	32310	2FD	28	63.0	60	90	100	102.0	5	9.0	2.0	2.0	0.35	1.70	0.900	1.8700
55	80	17.00	17.0	14.0	1.0	1.0	44.6	59.0	4300	5600	32911	2BC	14	60.0	64	74	73	77.0	4	3.0	1.0	1.0	0.31	1.90	1.100	0.2750

Boundary dimensions (mm)							Load rating (KN)		Limiting speed (r/min)		Bearing number	Dimentions series to ISO355	Load centre mm	Abutment and fillet dimensions mm									Axial load factors			Weight (reference) (kg)
d	D	T	B	C	r1,2 min	r3,4 min	Cr	Cor	Grease	Oil	Bearing number	Dimentions series to ISO355	a	da max	db max	Da max	Da min	Db min	Ca min	Cb min	ra max	rb max	e	Y	Yo	Weight (reference) (kg)
55	90	23.00	23.0	17.5	1.5	1.5	81.1	118	4000	5300	32011X	3CC	20	63.0	62	83	81	86.0	4	5.5	1.0	1.0	0.40	1.50	0.800	0.5500
55	90	27.00	27.0	21.0	1.5	1.5	95.8	146	4000	5300	33011	2CE	19	63.0	62	83	81	86.0	5	6.0	1.0	1.0	0.31	1.90	1.100	0.6700
55	95	30.00	30.0	23.0	1.5	1.5	121.	164	3800	5000	33111	3CE	22	63.0	62	88	83	91.0	5	7.0	1.0	1.0	0.37	1.60	0.900	0.8600
55	100	22.75	21.0	18.0	2.0	1.5	92.7	117	3800	5000	30211	3DB	21	64.0	64	91	88	94.0	4	4.5	1.5	1.5	0.40	1.50	0.800	0.7350
55	100	26.75	25.0	21.0	2.0	1.5	112.	139	3800	5000	32211	3DC	22	64.0	64	91	87	95.0	4	5.5	1.5	1.5	0.40	1.50	0.800	0.8630
55	100	35.00	35.0	27.0	2.0	1.5	152.	206	2200	3400	33211	3DE	25	63.0	64	91	85	96.0	6	8.0	1.5	1.5	0.40	1.50	0.800	1.2000
