Angular Contact Ball Bearing In Pairs D 30-1320mm
Short Description:
WELCOME TO DEMY BEARING，WELCOME TO VISIT OUR FACTORY
| Bearing numbers | ||||||||||||||||||

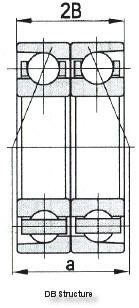

| d | D | 2B | r12 | r34 | Cr | Cor | Grease | Oil | Back to back arrangement DB |

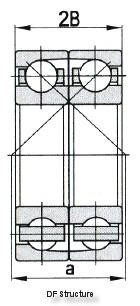

Face to face arrangement DF |
Series arrangement(DT) | da(min) | Da(max) | Db(max) | ra(max) | rb(max) | ||
| 30 | 62 | 32 | 1 | 0.3 | 30 | 24.5 | 7300 | 10000 | 7206BM/DT | – | – | 27.3 | 35.6 | 56.5 | – | 1 | – | 0.497 |
| 35 | 72 | 34 | 1.1 | 0.6 | 48.1 | 38 | 6300 | 8400 | 7207BTNT/DB | 61.9 | – | – | 42 | – | 67.5 | 1 | 0.6 | 0.571 |
| 35 | 72 | 34 | 1.1 | 0.6 | 41.5 | 34 | 6300 | 8400 | 7207BM/DT | – | – | 31 | 42 | 65 | – | 1 | – | 0.656 |
| 35 | 80 | 42 | 1.5 | 0.6 | 63.1 | 50 | 11000 | 18000 | 7307AC/DBA | 47.8 | – | – | 43.5 | – | 74.5 | 1.5 | 0.6 | 0.907 |
| 35 | 80 | 42 | 1.5 | – | 62.4 | 49 | 11000 | 15000 | 7307BM/DFYA3 | – | 28.1 | – | 43.5 | – | 74.5 | 1.5 | – | 1.10 |
| 35 | 80 | 42 | 1.5 | 0.6 | 62 | 49 | 6000 | 8000 | 7307BM/DT | – | – | 35 | 43.5 | 71.5 | – | 1.5 | – | 1.1 |
| 45 | 85 | 38 | 1.1 | 0.6 | 56 | 49 | 6000 | 7400 | 7209BM/DT | – | – | 36.8 | 52 | 78 | – | 1 | – | 1.97 |
| 45 | 100 | 50 | 1.5 | 0.6 | 108 | 88 | 9000 | 12000 | 7309ACM/DB | 58.8 | – | – | 54 | – | 94 | 1.5 | 1 | 2.03 |
| 45 | 100 | 50 | 1.5 | 0.6 | 97.5 | 79 | 9000 | 12000 | 7309BM/HADB | 85.8 | – | – | 54 | – | 94 | 1.5 | 1 | 2.03 |
| 45 | 100 | 50 | 1.5 | 0.6 | 75 | 80 | 9000 | 12000 | 7309BT/DB | 85.8 | – | – | 54 | – | 94 | 1.5 | 1 | 1.83 |
| 50 | 90 | 40 | 1.1 | 0.6 | 580 | 53.5 | 4800 | 6300 | 7210BM/DT | – | – | 39.4 | 57 | 83 | – | 1 | – | 1.17 |
| 50 | 110 | 54 | 2 | 1 | 117 | 98 | 8200 | 11000 | 7310ACM/DB | 64.3 | – | – | 60 | – | 104 | 2 | 1 | 2.32 |
| 50 | 110 | 54 | 2 | 1 | 113 | 88 | 8200 | 11000 | 7310BM/DB | 94.1 | – | – | 60 | – | 104 | 2 | 1 | 2.32 |
| 50 | 110 | 54 | 2 | – | 113 | 88 | 8200 | 11000 | 7310BM/DFYA3 | – | 40.1 | – | 60 | 100 | – | 2 | – | 2.32 |
| 50 | 110 | 54 | 2 | – | 122 | 102 | 8200 | 11000 | 7310CM/DF | – | -5.6 | – | 60 | 100 | – | 2 | – | 2.32 |
| 55 | 90 | 36 | 1.1 | 0.6 | 50.7 | 51 | 9200 | 1200 | 7011ACQ5/DB | 51.8 | – | – | 62 | – | 85 | 1 | 0.6 | 0.947 |
| 55 | 100 | 42 | 1.5 | 0.6 | 82 | 76 | 4300 | 5600 | 7211ACM/DB | 57.1 | – | – | 64 | – | 91 | 1.5 | 1 | 1.4 |
| 55 | 100 | 42 | 1.5 | 0.6 | 80.5 | 78 | 9000 | 12000 | 7211CHA/P4ADBA | 41.8 | – | – | 64 | – | 91 | 1.5 | 1 | 1.26 |
| 55 | 120 | 58 | 2 | 1 | 143 | 126 | 4000 | 5000 | 7311ACM/DB | 69.8 | – | – | 66 | – | 109 | 2 | 1 | 3.3 |
| 55 | 120 | 58 | 2 | 1 | 127 | 113 | 7500 | 9900 | 7311BM/DB | 102.4 | – | – | 65 | – | 114 | 2 | 1 | 13.55 |
| 60 | 110 | 44 | 1.5 | 0.6 | 72.5 | 98.8 | 7700 | 10000 | 7212C/DT | – | – | 22 | 69 | 101 | – | 1.5 | – | 1.57 |
| 60 | 110 | 44 | 1.5 | 0.6 | 89.5 | 86 | 7700 | 10000 | 7212ACM/DB | 61.6 | – | – | 69 | – | 101 | 1.5 | 1 | 1.9 |
| 60 | 130 | 62 | 2.1 | – | 154 | 134 | 4000 | 5000 | 7312ACM/DF | – | 13.3 | – | 72 | 118 | – | 2 | – | 4.05 |
| 60 | 130 | 62 | 2.1 | 1.1 | 106 | 138 | 5600 | 7800 | 7312BT/DB | 111 | – | – | 69 | – | 127 | 2 | 1 | 1.83 |
| Bearing numbers | ||||||||||||||||||
| d | D | 2B | r12 | r34 | Cr | Cor | Grease | Oil | Back to back arrangement DB |
Face to face arrangement DF |
Series arrangement(DT) | da(min) | Da(max) | Db(max) | ra(max) | rb(max) | ||
| 60 | 130 | 62 | 2.1 | 1.1 | 155 | 135 | 6900 | 9200 | 7312AC/DB | 75.3 | – | – | 72 | – | 123 | 2 | 1 | 3.61 |
| 65 | 100 | 36 | 1.1 | 0.6 | 54.6 | 62 | 7800 | 10000 | 7013AC/DT | – | – | 28.2 | 72 | 93 | – | 1 | – | 0.828 |
| 65 | 120 | 46 | 1.5 | 0.6 | 118 | 117 | 7100 | 9500 | 7213ACQ5/DBYA3 | 66.1 | – | – | 74 | – | 114 | 1.5 | 1 | 2.43 |
| 65 | 140 | 66 | 2.1 | 1.1 | 186 | 169 | 6400 | 8500 | 7313ACM/DB | 80.8 | – | – | 77 | – | 133 | 2 | 1 | 5.22 |
| 70 | 110 | 40 | 1.1 | 1.1 | 58.5 | 86 | 6900 | 9200 | 7014CM/P5DB | 62 | – | – | 77 | – | 102 | 1 | 1 | 1.45 |
| 70 | 125 | 48 | 1.5 | 0.6 | 124 | 123 | 3300 | 4600 | 7214ACM/DB | 69.5 | – | – | 79 | – | 116 | 1.5 | 1 | 2.52 |
| 70 | 125 | 48 | 1.5 | 0.6 | 108 | 108 | 3300 | 4600 | 7214BM/DT | – | – | 52.9 | 79 | 116 | – | 1.5 | – | 2.54 |
| 70 | 150 | 70 | 2.1 | 1.1 | 209 | 193 | 5900 | 7900 | 7314ACM/DB | 86.3 | – | – | 82 | – | 143 | 2 | 1 | 6.20 |
| 70 | 150 | 70 | 2.1 | – | 209 | 193 | 5900 | 7900 | 7314ACM/DF | – | 16.3 | – | 82 | 138 | – | 2 | – | 6.14 |
| 70 | 150 | 70 | 2.1 | 1.1 | 186 | 173 | 3800 | 5000 | 7314BM/DB | 127.3 | – | – | 82 | – | 143 | 2 | 1 | 6.40 |
| 70 | 150 | 70 | 2.1 | – | 185 | 171 | 3000 | 4000 | 7314BM/DT | – | – | 64 | 82 | 138 | – | 2 | – | 6.40 |
| 75 | 130 | 50 | 1.5 | 0.6 | 112 | 116 | 6200 | 8200 | 7215BM/DB | 111 | – | – | 84 | – | 124 | 1.5 | 1 | 2.63 |
| 75 | 160 | 74 | 2.1 | 1.1 | 228 | 218 | 5500 | 7400 | 7315ACM/DB | 91.8 | – | – | 87 | – | 153 | 2 | 1 | 7.14 |
| 75 | 160 | 74 | 2.1 | 1.1 | 228 | 218 | 5500 | 7400 | 7315ACM/DT | – | – | 45.9 | 87 | 148 | – | 2 | – | 7.14 |
| 75 | 160 | 74 | 2.1 | 1.1 | 228 | 218 | 5500 | 7400 | 7315ACQ1/DT | – | – | 45.9 | 87 | 148 | – | 2 | – | 7.04 |
| 75 | 160 | 74 | 2.1 | 1.1 | 203 | 194 | 3600 | 4800 | 7315B/DT | – | – | 67.8 | 87 | 148 | – | 2 | – | 6.51 |
| 75 | 160 | 74 | 2.1 | 1.1 | 203 | 194 | 3600 | 4800 | 7315BQ1/P6DTGAS0 | – | – | 67.8 | 87 | 148 | – | 2 | – | 7.41 |
| 80 | 125 | 44 | 1.1 | 0.6 | 89.7 | 105 | 6400 | 8500 | 7016ACM/DB | 69.8 | – | – | 87 | – | 120 | 1 | 0.6 | 1.97 |
| 80 | 140 | 52 | 2 | 1 | 150 | 158 | – | – | 7216ACQ5/DBYA3 | 77.5 | – | – | 90 | – | 134 | 2 | 1 | 3.26 |
| 80 | 140 | 52 | 2 | 1 | 150 | 158 | 3000 | 4000 | 7216ACM/DB | 77.5 | – | – | 91 | – | 129 | 2 | 1 | 3.46 |
| 80 | 170 | 78 | 2.1 | 1.1 | 218 | 218 | 3400 | 4500 | 7316BM/DT | – | – | 71.9 | 92 | 158 | – | 2 | – | 8.50 |
| 80 | 170 | 78 | 2.1 | 1.1 | 246 | 245 | 2500 | 3600 | 7316ACM/DB | 97.3 | – | – | 92 | – | 158 | 2 | 1 | 8.41 |
| 80 | 200 | 96 | 3 | 1.1 | 320 | 339 | 4000 | 6000 | 7416AC/DT | – | – | 56.7 | 94 | 186 | – | 2.5 | – | 14.4 |
| 85 | 150 | 56 | 2 | 1 | 148 | 151 | 5400 | 7200 | 7217BM/DB | 126.7 | – | – | 95 | – | 144 | 2 | 1 | 4.47 |
| Bearing numbers | ||||||||||||||||||
| d | D | 2B | r12 | r34 | Cr | Cor | Grease | Oil | Back to back arrangement DB |
Face to face arrangement DF |
Series arrangement(DT) | da(min) | Da(max) | Db(max) | ra(max) | rb(max) | ||
| 85 | 180 | 82 | 3 | 1.1 | 265 | 273 | 4900 | 6500 | 7317ACM/DB | 102.8 | – | – | 99 | – | 173 | 2.5 | 1 | 9.95 |
| 85 | 180 | 82 | 3 | – | 265 | 273 | 4900 | 6500 | 7317ACM/DF | – | 20.8 | – | 99 | 166 | – | 2.5 | – | 9.97 |
| 90 | 190 | 86 | 3 | 1.1 | 286 | 305 | 4500 | 6300 | 7318ACM/DB | 108.2 | – | – | 104 | – | 173 | 2.5 | 1 | 12.4 |
| 95 | 170 | 64 | 2.1 | – | 215 | 229 | 4800 | 6400 | 7219ACQ5/DF | – | 29.8 | – | 107 | 158 | – | 2 | – | 5.95 |
| 95 | 200 | 90 | 3 | 1.1 | 306 | 335 | 4300 | 5800 | 7319ACM/DB | 113.8 | – | – | 109 | – | 193 | 2.5 | 1 | 13.3 |
| 95 | 200 | 90 | 3 | – | 305 | 335 | 2000 | 3000 | 7319ACM/DF | – | 23.8 | – | 109 | 186 | – | 2.5 | – | 13.3 |
| 95 | 200 | 90 | 3 | – | 355 | 300 | 4000 | 5000 | 7319BM/DF | – | 78.8 | – | 109 | 186 | – | 2.5 | – | 13.4 |
| 100 | 180 | 68 | 2.1 | 1.1 | 242 | 260 | 4600 | 6100 | 7220ACM/DB | 99.3 | – | – | 112 | – | 173 | 2 | 1 | 7.48 |
| 100 | 215 | 94 | 3 | – | 345 | 395 | 1900 | 2800 | 7320ACM/DF | – | 26.5 | – | 114 | 201 | – | 2 | – | 19.2 |
| 100 | 215 | 94 | 3 | – | 305 | 355 | 1900 | 2800 | 7320BM/DF | – | 85.2 | – | 114 | 201 | – | 2 | – | 16.8 |
| 100 | 215 | 94 | 3 | 1.1 | 309 | 354 | 4100 | 5500 | 7320BT/DT | – | – | 89.6 | 114 | 201 | – | 2.5 | – | 15.2 |
| 110 | 200 | 76 | 2.1 | 1.1 | 299 | 342 | 4100 | 5500 | 7222CM/DB | 79.5 | – | – | 122 | – | 188 | 2 | 1 | 10.0 |
| 110 | 200 | 76 | 2.1 | 1.1 | 286 | 325 | 2000 | 3000 | 7222ACM/DB | 103.3 | – | – | 122 | – | 188 | 2 | 1 | 9.84 |
| 110 | 200 | 76 | 2.1 | 1.1 | 250 | 289 | 4000 | 6000 | 7222BM/P5DBCB | 167.9 | – | – | 122 | – | 188 | 2 | 1 | 7.92 |
| 110 | 240 | 100 | 3 | 1.1 | 389 | 463 | 3700 | 5000 | 7322ACM/DT | – | – | 65.8 | 124 | 226 | – | 2.5 | – | 19.8 |
| 110 | 240 | 100 | 3 | – | 389 | 463 | 3700 | 5000 | 7322ACM/DF | – | 31.6 | – | 124 | 226 | – | 2.5 | – | 19.9 |
| 110 | 240 | 100 | 3 | 1.1 | 347 | 425 | 3700 | 5000 | 7322BM/DB | 198.5 | – | – | 124 | – | 233 | 2.5 | 1 | 22.9 |
| 110 | 240 | 100 | 3 | – | 347 | 425 | 3700 | 5000 | 7322BM/DF | – | 98.5 | – | 124 | 226 | – | 2.5 | – | 23.5 |
| 120 | 180 | 56 | 2 | – | 164 | 214 | 4200 | 5600 | 7024AC/DF | – | 42 | – | 130 | 170 | – | 2 | – | 4.62 |
| 120 | 180 | 56 | 2 | 1 | 140 | 185 | 2000 | 2900 | 7024BM/DT | – | – | 77 | 130 | 170 | – | 2 | – | – |
| 120 | 215 | 80 | 2.1 | 1.1 | 307 | 367 | 3800 | 5000 | 7224ACQ5/DB | 118.1 | – | – | 132 | – | 208 | 2 | 1 | 13.1 |
| 120 | 260 | 110 | 3 | – | 400 | 540 | 3300 | 4500 | 7324AC/DF | – | 33.6 | – | 134 | 246 | – | 2.5 | – | 27.4 |
| 120 | 260 | 110 | 3 | 1.1 | 410 | 525 | 3300 | 4500 | 7324B/DT | – | – | 107.2 | 134 | 246 | – | 2.5 | – | 29.2 |
| 130 | 230 | 80 | 3 | 1.1 | 278 | 350 | 1800 | 2600 | 7226BM/P5DBCB | 191 | – | – | 144 | – | 216 | 2.5 | 1 | 15.1 |
| Bearing numbers | ||||||||||||||||||
| d | D | 2B | r12 | r34 | Cr | Cor | Grease | Oil | Back to back arrangement DB |
Face to face arrangement DF |
Series arrangement(DT) | da(min) | Da(max) | Db(max) | ra(max) | rb(max) | ||
| 130 | 280 | 116 | 4 | – | 403 | 537 | 3000 | 4000 | 7326B/DF | – | 114 | – | 148 | 262 | – | 3 | – | 35.9 |
| 130 | 280 | 116 | 4 | 1.5 | 403 | 537 | 3000 | 4000 | 7326B/DT | – | – | 115.1 | 148 | 262 | – | 3 | – | 35.9 |
| 140 | 210 | 66 | 2 | – | 203 | 275 | 3600 | 4800 | 7028AC/DF | – | 48.6 | – | 150 | 200 | – | 2 | – | 6.92 |
| 140 | 250 | 84 | 3 | 1.1 | 309 | 414 | 3200 | 4200 | 7228BM/DB | 205.8 | – | – | 154 | – | 243 | 2.5 | 1 | 17.2 |
| 140 | 250 | 84 | 3 | 1.1 | 310 | 415 | 1700 | 2300 | 7228BM/P5DBCB | 205.6 | – | – | 154 | – | 243 | 2.5 | 1 | 17.2 |
| 140 | 300 | 124 | 4 | 1.5 | 447 | 616 | 2800 | 3800 | 7328B/DT | – | – | 123.2 | 158 | 282 | – | 3 | – | 42.3 |
| 140 | 300 | 124 | 4 | 1.5 | 445 | 600 | 2900 | 3900 | 7328BA/DT | – | – | 123 | 158 | 282 | – | 3 | – | 42.3 |
| 150 | 225 | 70 | 2.1 | 1.1 | 213 | 294 | 1700 | 2300 | 7030BM/DB | 192.3 | – | – | 160 | – | 215 | 2 | 1 | 9.61 |
| 150 | 270 | 90 | 3 | – | 310 | 430 | 1600 | 2000 | 7230B/DF | – | 132 | – | 165 | 256 | – | 2.5 | – | 22 |
| 150 | 320 | 130 | 4 | – | 582 | 857 | 2600 | 3600 | 7330AC/DF | – | 45.3 | – | 168 | 302 | – | 3 | – | 51.6 |
| 150 | 320 | 130 | 4 | – | 582 | 856 | 2600 | 3600 | 7330B/DF | – | 132 | – | 168 | 302 | – | 3 | – | 52.3 |
| 160 | 240 | 76 | 2.1 | 1.1 | 225 | 315 | 3100 | 4100 | 7032BM/DB | 205.8 | – | – | 172 | – | 233 | 2 | 1 | 12.6 |
| 160 | 290 | 96 | 3 | 1.1 | 340 | 500 | 1400 | 1900 | 7232B/DB | 236.8 | – | – | 174 | – | 276 | 2.5 | 1 | 27.8 |
| 160 | 340 | 136 | 4 | – | 547 | 819 | 2000 | 3000 | 7332B/DF | – | 141.8 | – | 178 | 322 | – | 3 | – | 61.6 |
| 170 | 229.5 | 56 | 2 | – | 147 | 225 | 3600 | 4800 | 71934X1B/DFYA3 | – | 139 | – | 168 | 225 | – | 1.5 | – | 7.04 |
| 170 | 260 | 84 | 2.1 | 1.1 | 310 | 435 | 1500 | 2000 | 7034A/C2DB | 166.2 | – | – | 181 | – | 249 | 2 | 1 | 15.6 |
| 170 | 260 | 84 | 2.1 | 1.1 | 272 | 380 | 1500 | 2000 | 7034B/DB | 222.6 | – | – | 181 | – | 249 | 2 | 1 | 16.6 |
| 170 | 310 | 104 | 4 | 1.5 | 462 | 685 | 2900 | 3900 | B7234AC/DT | – | – | 82 | 181 | 249 | – | 3 | – | 34.8 |
| 170 | 310 | 104 | 4 | 1.5 | 495 | 740 | 1800 | 2500 | 7234AC/DT | – | – | 82 | 181 | 249 | – | 3 | – | 34.5 |
| 170 | 360 | 144 | 4 | 1.5 | 570 | 905 | 1000 | 1500 | 7334B/DB | 294 | – | – | 188 | – | 351.5 | 3 | 1.5 | 69.8 |
| 180 | 280 | 92 | 2.1 | 1.1 | 310 | 485 | 1200 | 1700 | 7036B/DT | – | – | 119 | 192 | 269 | – | 2 | – | 21 |
| 180 | 320 | 104 | 4 | – | 400 | 645 | 1000 | 1500 | 7236B/DF | – | 158 | – | 198 | 304 | – | 3 | – | 35 |
| 180 | 380 | 150 | 4 | 2 | 590 | 970 | 1000 | 1400 | 7336B/DT | – | – | 156 | 198 | 362 | – | 3 | – | 81 |
| 190 | 290 | 92 | 2.1 | 1.1 | 347 | 526 | 2600 | 3400 | 7038AC/DT | – | – | 79 | 202 | 278 | – | 2 | – | 21.4 |
| Bearing numbers | ||||||||||||||||||
| d | D | 2B | r12 | r34 | Cr | Cor | Grease | Oil | Back to back arrangement DB |
Face to face arrangement DF |
Series arrangement(DT) | da(min) | Da(max) | Db(max) | ra(max) | rb(max) | ||
| 190 | 400 | 156 | 5 | 2 | 640 | 1100 | 900 | 1400 | 7338B/DT | – | – | 164 | 210 | 380 | – | 4 | – | 97 |
| 200 | 310 | 102 | 2.1 | 1.1 | 370 | 575 | 1600 | 2100 | 7040B/DB | 265 | – | – | 211 | – | 299 | 2 | 1 | 28.3 |
| 200 | 360 | 116 | 4 | 1.5 | 503 | 834 | 2200 | 3000 | 7240B/DB | 292.9 | – | – | 218 | – | 351 | 3 | 1.5 | 51.6 |
| 200 | 360 | 116 | 4 | – | 589 | 974 | 2200 | 3000 | 7240C/DF | – | 17 | – | 218 | 342 | – | 3 | – | 50.3 |
| 200 | 360 | 116 | 4 | – | 728 | 920 | 2200 | 3000 | 7240AC/DF | – | 72.6 | – | 218 | 342 | – | 3 | – | 50.3 |
| 200 | 420 | 160 | 5 | 2 | 720 | 1270 | 900 | 1200 | 7340B/DT | – | – | 170 | 220 | 400 | – | 4 | – | 108 |
| 220 | 340 | 112 | 3 | 1.1 | 400 | 700 | 900 | 1300 | 7044B/DB | 290 | – | – | 234 | – | 325 | 2.5 | 1 | 36.5 |
| 220 | 400 | 130 | 4 | 1.5 | 505 | 910 | 900 | 1200 | 7244B/DB | 328 | – | – | 238 | – | 384 | 3 | 1.5 | 70.6 |
| 220 | 460 | 176 | 5 | – | 800 | 1450 | 800 | 1200 | 7344B/DF | – | 198 | – | 240 | 440 | – | 4 | – | 142 |
| 230 | 329.5 | 80 | 2.1 | 1.1 | 358 | 605 | 900 | 1200 | 7646AMB/DB | 201.6 | – | – | 245 | – | 321 | 2 | 1 | 22.7 |
| 240 | 360 | 112 | 3 | – | 410 | 760 | 900 | 1200 | 7048B/DF | – | 196 | – | 255 | 345 | – | 2.5 | – | 39 |
| 240 | 370 | 112 | 3 | – | – | – | – | – | 366748K | – | 199.9 | – | 254 | 356 | – | 2.5 | – | 48.7 |
| 260 | 360 | 92 | 2.1 | – | 277 | 630 | – | – | 71952B/DF | – | 214 | – | 272 | 348 | – | 2 | – | 28.8 |
| 280 | 380 | 92 | 2.1 | 1.1 | 436 | 810 | 950 | 1400 | 71956AC/DB | 200 | – | – | 292 | – | 372 | 2 | 1 | 31.4 |
| 280 | 380 | 92 | 2.1 | 1.1 | 410 | 745 | 950 | 1400 | 71956A/DBA | 236.6 | – | – | 290 | – | 370 | 2 | 1 | 33.2 |
| 280 | 420 | 130 | 4 | 1.5 | 490 | 1000 | 800 | 1000 | 7056B/DB | 358 | – | – | 298 | – | 404 | 3 | 1.5 | 60 |
| 340 | 520 | 164 | 5 | – | 725 | 1620 | 660 | 900 | 7068B/DF | – | 282 | – | 360 | 500 | – | 4 | – | 124 |
| 360 | 440 | 76 | 2.1 | 1.1 | 365 | 840 | 1500 | 1900 | 71872AC/DB | 224 | – | – | 372 | – | 430 | 2 | 1 | 24 |
| 360 | 480 | 112 | 3 | 3 | 560 | 1250 | 740 | 1000 | 71972AC/DB | 252 | – | – | 374 | – | 465 | 2.5 | 2.5 | 57.5 |
| 380 | 480 | 92 | 2.1 | 1.1 | 359 | 730 | 700 | 910 | 71876B/DB | 601 | – | – | 392 | – | 473 | 2 | 1 | 37.2 |
| 380 | 520 | 130 | 4 | 4 | 640 | 1470 | 700 | 910 | 71976AC/DT | – | – | 137 | 396 | 505 | – | 3 | – | 83.5 |
| 420 | 620 | 180 | 5 | 2 | 850 | 2130 | 520 | 700 | 7084B/DT | – | – | 263 | 439 | 602 | – | 4 | – | 176 |
| 460 | 580 | 112 | 3 | 3 | 580 | 1530 | 610 | 810 | 71892A/DT | – | – | 178 | 474 | 567 | – | 2.5 | – | 68 |
| 500 | 620 | 74 | 2.1 | – | 430 | 1230 | 520 | 700 | 708/500A/DF | – | 286 | _ | 512 | 610 | – | 2 | – | 54.5 |
| Bearing numbers | ||||||||||||||||||
| d | D | 2B | r12 | r34 | Cr | Cor | Grease | Oil | Back to back arrangement DB |
Face to face arrangement DF |
Series arrangement(DT) | da(min) | Da(max) | Db(max) | ra(max) | rb(max) | ||
| 500 | 670 | 156 | 5 | 2 | 86 | 860 | 500 | 660 | 719/500A/DT | – | – | 208 | 519 | 653 | – | 4 | – | 154 |
| 530 | 615 | 70 | 3 | 1.1 | 210 | 520 | 1000 | 1400 | 718/530X3AC/P5DB | 296.7 | – | – | 544 | – | 608 | 2.5 | 1 | 37.1 |
| 530 | 650 | 112 | 3 | – | 620 | 1810 | 510 | 680 | 718/530A/DF | – | 285 | – | 544 | 638 | – | 2.5 | – | 77 |
| 530 | 650 | 112 | 3 | 1.1 | 645 | 1850 | 910 | 1250 | 718/530AC/DB | 331 | – | – | 544 | – | 638 | 2.5 | 1 | 77 |
| 530 | 710 | 164 | 5 | 2 | 1030 | 2530 | 500 | 700 | 719/530A/DB | 440 | – | – | 552 | – | 700 | 4 | 2 | 189 |
| 560 | 680 | 112 | 3 | 1.1 | 635 | 1850 | 470 | 620 | 718/560A/DT | – | – | 207 | 575 | 667 | – | 2.5 | – | 95 |
| 600 | 730 | 120 | 3 | 3 | 740 | 2330 | 790 | 1100 | 718/600AC/DB | 370 | – | – | 614 | – | 718 | 2.5 | 2.5 | 94.5 |
| 670 | 820 | 138 | 4 | 1.5 | 830 | 2510 | 380 | 500 | 718/670A/DT | – | – | 250 | 686 | 806 | – | 3 | – | 156 |
| 710 | 870 | 148 | 4 | – | 955 | 3240 | 370 | 480 | 718/710AC/DF | – | 294 | – | 726 | 856 | – | 3 | – | 192 |
| 710 | 950 | 212 | 5 | 2 | 1370 | 4500 | 640 | 850 | 719/710AC/DB | 494 | – | – | 734 | – | 926 | 5 | 2.5 | 389 |
| 750 | 920 | 156 | 5 | – | 985 | 3450 | 310 | 420 | 718/750A/DF | – | 404 | – | 768 | 902 | – | 4 | – | 220 |
| 1320 | 1600 | 244 | 6 | – | 1930 | 8230 | 200 | 300 | 718/1320ACF3/DF | – | 558.9 | – | 1348 | 1572 | – | 5 | – | 987 |
